20-foot Flat Rack Shipping Container – Cargo-worthy

Description

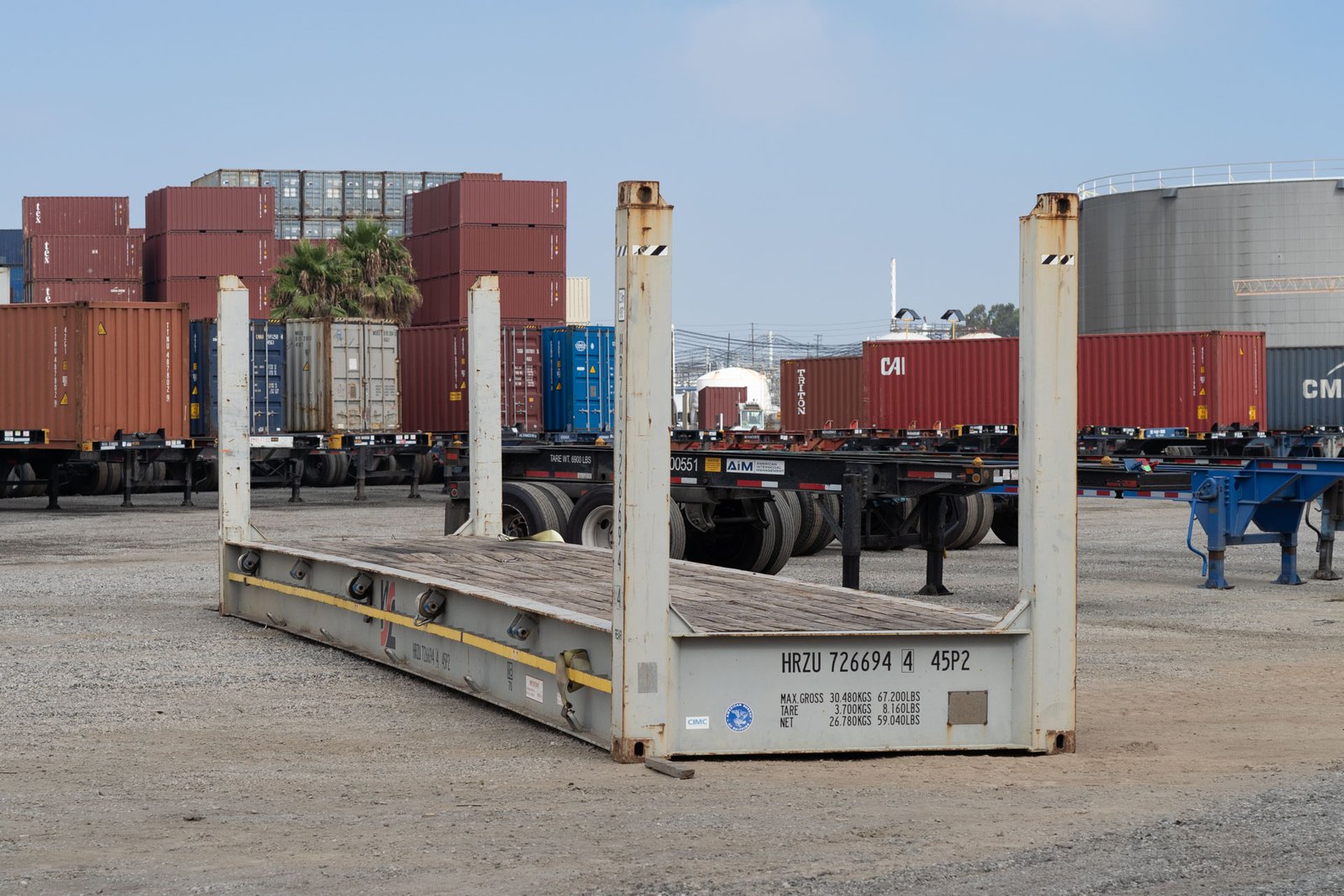

This 20-foot flat rack shipping container is designed for transporting cargo that exceeds the dimensions of standard enclosed containers. The unit consists of a heavy-duty steel base frame with collapsible end walls at each end. When end walls are folded, multiple flat racks can be stacked for return transport.

The open sides and top configuration accommodates oversized machinery, vehicles, timber, pipes, and construction materials. Lashing rings are integrated into the base frame and end walls for securing cargo during transit. Corner castings at each corner allow for lifting, stacking, and securement aboard vessels, chassis, or rail cars.

This unit is classified as cargo-worthy, indicating it meets structural requirements for intermodal freight transport. The base frame features steel cross members and a flush-mounted hardwood floor suitable for wheeled and tracked equipment. End walls are constructed with COR-TEN steel and lock into vertical position for transit.

Technical Specifications

• External Length: 20 ft (6.06 m)
• External Width: 8 ft (2.44 m)
• End Wall Height (erected): 6 ft 8 in (2.03 m)
• Base Frame Height: 2 ft 2 in (0.66 m)
• Internal Length: 19 ft 5 in (5.92 m)
• Internal Width: 7 ft 8 in (2.34 m)
• Maximum Payload: Approximately 31,000 kg (68,300 lbs)
• Tare Weight: Approximately 2,800 kg (6,200 lbs)
• Number of Lashing Rings: 16+ (base and end walls)
• Material: COR-TEN steel
• Floor Material: Hardwood
• End Wall Configuration: Collapsible, locking
• Corner Castings: ISO standard
• Classification: Cargo-worthy

Compatibility / Intended Use
This container is intended for intermodal freight transport and ground-level applications including:

• Oversized machinery and equipment shipping
• Construction material transport
• Timber and pipe shipments
• Vehicle and heavy equipment transport
• Project cargo and industrial applications
• Storage of non-containerizable goods

Package Includes

• 1 x 20-foot flat rack shipping container
• 2 x collapsible end walls with locking mechanisms
